Key Takeaways:
- The binary number system uses only two digits: 0 and 1, called bits, and is foundational to computer operations.
- Each position in a binary number has a weight based on powers of 2, making it a weighted number system.
- The most significant bit (MSB) and least significant bit (LSB) in a binary number differ in their impact on the number’s value.
Computers don’t think like us. While we count in tens—using digits from 0 to 9—computers use just two digits: 0 and 1. This is the binary number system, and it’s at the heart of everything digital.
Table of Contents
What Is the Binary Number System?
A binary number system is a base-2 number system. That means it only uses two digits: 0 and 1. In math terms, the base (or radix) is 2. Each digit in a binary number is called a bit.
Let’s break it down:
- Base (R): 2
- Digits: 0, 1 (since 0 to R-1 means 0 to 1)
- Bit: A single binary digit
So, a binary number like 10101 is made up of five bits: 1, 0, 1, 0, 1.
How Does Binary Work?
Binary is a weighted number system. That means each position in the number has a value based on powers of 2. Let’s look at the number 10101:
| Position (from right) | 4 | 3 | 2 | 1 | 0 |
|---|---|---|---|---|---|
| Bit | 1 | 0 | 1 | 0 | 1 |
| Weight (2^position) | 16 | 8 | 4 | 2 | 1 |
To find the decimal equivalent, multiply each bit by its weight and add them up:
text(1 × 16) + (0 × 8) + (1 × 4) + (0 × 2) + (1 × 1)
= 16 + 0 + 4 + 0 + 1
= 21
So, 10101 in binary is 21 in decimal.
Binary Points and Fractions
Binary isn’t just for whole numbers. You can have fractions, too. For example, 10101.11:
- Left of the binary point: Each position is a power of 2 (as above).
- Right of the binary point: Each position is a negative power of 2.
Let’s break it down:
| Position | 4 | 3 | 2 | 1 | 0 | . | -1 | -2 |
|---|---|---|---|---|---|---|---|---|
| Bit | 1 | 0 | 1 | 0 | 1 | . | 1 | 1 |
So, the value is:
(1 × 16) + (0 × 8) + (1 × 4) + (0 × 2) + (1 × 1) + (1 × 0.5) + (1 × 0.25)
= 16 + 0 + 4 + 0 + 1 + 0.5 + 0.25
= 21.75
Most Significant Bit (MSB) and Least Significant Bit (LSB)
In a binary number, the leftmost bit is called the most significant bit (MSB), and the rightmost bit is the least significant bit (LSB).
Let’s look at 10101 (decimal 21):
- MSB: The first 1 (leftmost)
- LSB: The last 1 (rightmost)
If you change the MSB from 1 to 0, the number becomes 00101 (decimal 5). That’s a big change—from 21 to 5.
If you change the LSB from 1 to 0, the number becomes 10100 (decimal 20). That’s a much smaller change.
This shows that the MSB has a much greater impact on the number’s value than the LSB.
Units of Data
Bits are the smallest units of data, but we often group them for convenience:
- Bit: 1 binary digit (0 or 1)
- Nibble: 4 bits
- Byte: 8 bits
- Word: 16 bits (2 bytes)
- Double word: 32 bits (4 bytes)
Nibbles are useful for representing numbers in binary-coded decimal (BCD) and hexadecimal, since both use 4 bits per digit.
Why Is Binary Important?
Computers use binary because it’s simple to implement in hardware. Electronic circuits can easily represent two states: on (1) and off (0). This makes binary the natural choice for digital systems.
FAQs
Q: What is the binary number system?
A: The binary number system is a base-2 system that uses only two digits: 0 and 1. Each digit is called a bit.
Q: Why do computers use binary?
A: Computers use binary because it’s easy to represent two states (on/off) with electronic circuits, making digital processing reliable and efficient.
Q: What is a bit?
A: A bit is a single binary digit, either 0 or 1. It’s the smallest unit of data in computing.
Q: What is the difference between MSB and LSB?
A: The MSB (most significant bit) is the leftmost bit in a binary number and has the greatest effect on the number’s value. The LSB (least significant bit) is the rightmost bit and has the least effect.

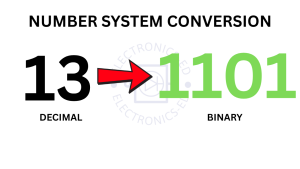

Q: How do you convert binary to decimal?
A: Multiply each bit by its corresponding power of 2 (based on its position), then add the results.
Q: What is a nibble?
A: A nibble is a group of 4 bits. It’s often used to represent a single hexadecimal digit.
Summary Table
| Term | Description | Example |
|---|---|---|
| Bit | Single binary digit (0 or 1) | 1 |
| Nibble | 4 bits | 1010 |
| Byte | 8 bits | 10101010 |
| Word | 16 bits (2 bytes) | 1010101010101010 |
| Double word | 32 bits (4 bytes) | (32 bits) |
Wrapping Up
The binary number system is the foundation of all digital technology. By understanding how bits, weights, and positions work, you can see why computers use binary and how they process information. Whether you’re working with whole numbers or fractions, the principles are the same: each bit has a value based on its position, and the MSB is always the most important.
In short:
- Binary uses 0 and 1.
- Each bit’s value depends on its position.
- MSB is more significant than LSB.
Understanding binary is a key step in learning how computers work.
